Most builders learned light-frame construction methods one way and never looked back. It works, it’s familiar, and nobody questions it, until the lumber bill arrives or an energy inspector flags the wall assembly. That’s usually when advanced framing techniques come into play.
The system has been around since the 1970s, has been proven in the field, and has been written into building codes for decades. Yet most contractors still frame the same way their predecessors did. In this guide, we’ll break down exactly how advanced framing works, where it outperforms conventional methods, and, just as importantly, where it doesn’t. No hype, just a clear look at what the system actually delivers.
What Is Advanced Framing?
Advanced framing, formally known as Optimum Value Engineering (OVE), is a system of wood-framing techniques designed to place lumber only where it’s structurally necessary and insulation everywhere else.
The concept isn’t new. HUD developed it in the 1960s and 70s through “Operation Breakthrough“, and the NAHB Research Foundation published the defining document in 1977. It was written into model building codes by the early 1980s. Most builders still haven’t adopted it; not because it doesn’t work, but because conventional framing has a 150-year head start and institutional inertia is powerful.
Core Advanced Framing Techniques Explained
24″ on-center stud spacing
Switching stud spacing from 16″ to 24″ on center reduces lumber piece counts by roughly 30%, directly lowering material and labor costs. Transitioning from 2×4 to 2×6 studs at this wider spacing also expands the wall cavity depth, dropping the framing fraction from 25% to 15%. This reduces thermal bridging and significantly increases the whole-wall insulation rating from R-7.7 to R-13.9. However, continuous wood structural panel sheathing (plywood or OSB) is non-negotiable at 24″ spacing to maintain structural integrity and provide a solid nailbase for siding.

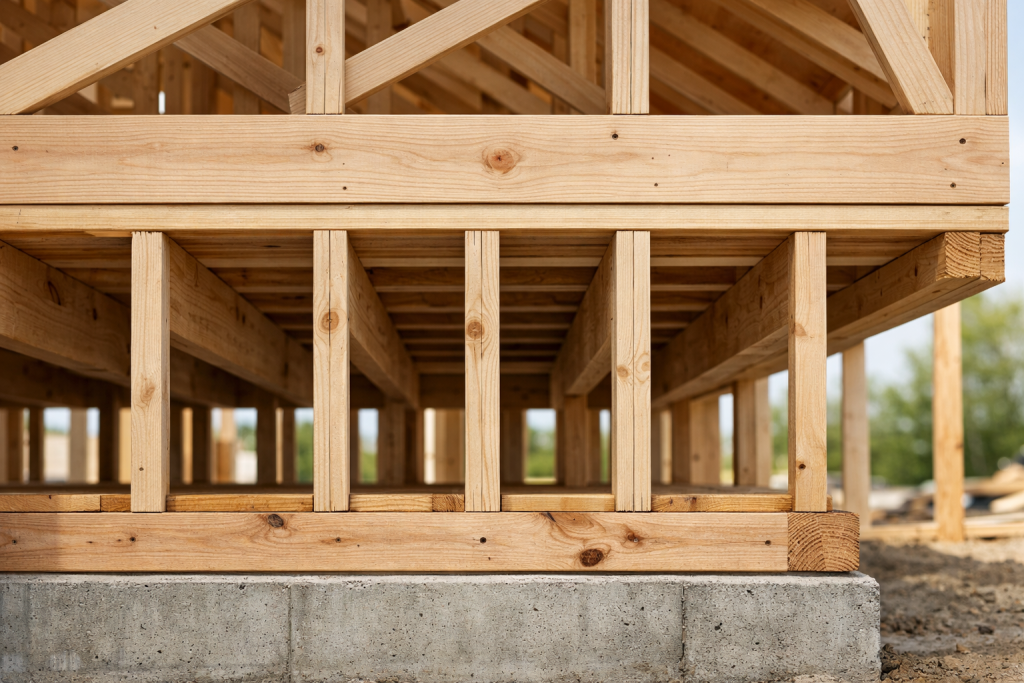

Single top plates
A single top plate replaces the conventional double plate to save lumber and increase insulation space. This method requires all rafters, joists, and studs to align vertically within 1″ to transfer structural loads directly down to the foundation. Without perfect alignment, loads concentrate heavily on unsupported sections, risking framing failure. Additionally, single top plates require 94″ studs rather than standard 92.5″ pre-cuts, which can cause ordering and logistics errors if crews are unprepared.
Two-stud corners
Conventional three-stud corners create an isolated cavity that is difficult to insulate. Two-stud corners leave this space open, easily meeting the ENERGY STAR R-6 corner insulation requirement. Using drywall clips also creates a “floating corner”. Because wood expands seasonally and drywall does not, avoiding rigid fastening at the corners reduces drywall cracking and service callbacks.
Minimal jack studs and right-sized headers
Advanced structural wood framing reduces lumber use by 5% to 10% in board-feet and uses 30% fewer structural pieces, cutting material costs and speeding up construction. Headers are custom-sized for actual loads, often using single-ply lumber, rather than defaulting to oversized beams. Non-load-bearing walls require no headers at all. However, builders must carefully calculate point loads and place openings precisely along the 24″ framing module to ensure structural stability.

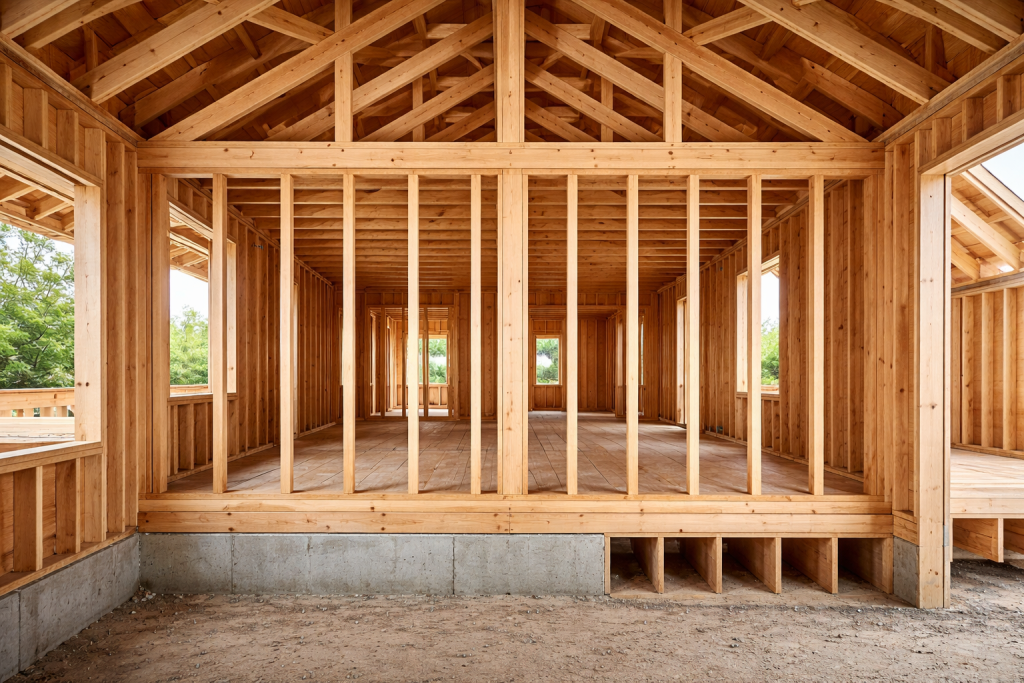

In-line (stack) framing
Stack framing aligns every roof rafter, floor joist, and wall stud directly over the member below it. This alignment creates a continuous load path from the roof down to the foundation. As the organizing principle of advanced framing, strict stack framing is mandatory to make single top plates safe and to realize the material savings of 24″ stud spacing.

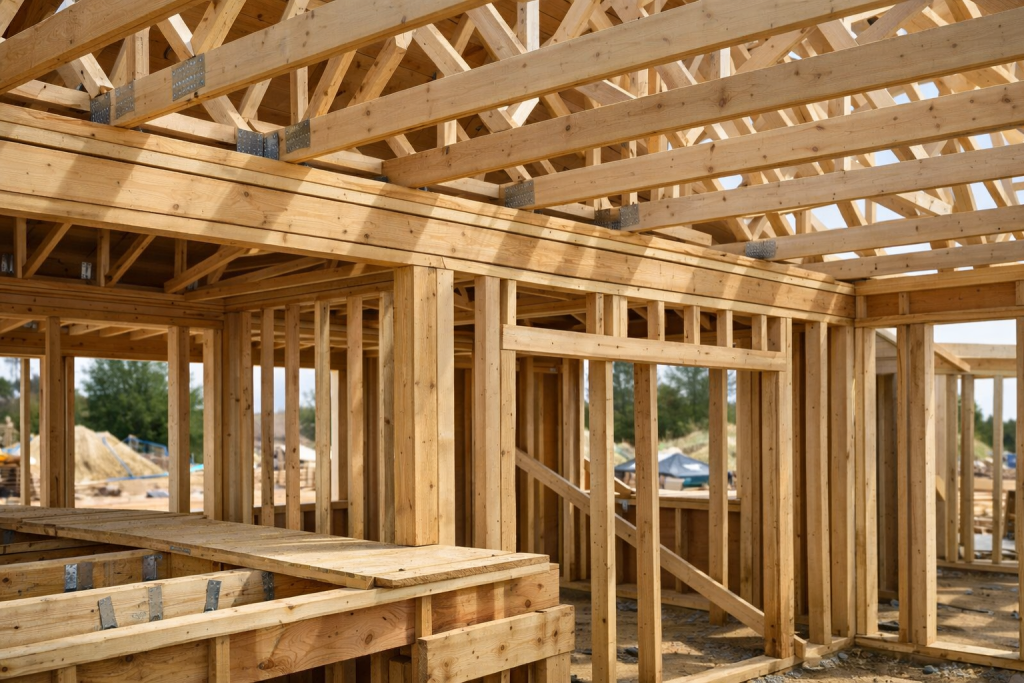

Advanced Framing vs. Traditional Framing
| Factor | Advanced Framing | Traditional Framing |
| Stud spacing | 24″ o.c. | 16″ o.c. |
| Piece count | ~30% fewer | Baseline |
| Insulation cavity | Deeper (2×6) | Shallower (2×4) |
| Framing fraction | ~15% | ~25% |
| Whole-wall R-value | ~13.9 | ~7.7 |
| Load redundancy | Reduced | High |
| Framer tolerance | Low | High |
| Inspection familiarity | Variable | Universal |
| Remodel flexibility | Less | More |
Structural Performance
Advanced framing is safe but unforgiving. It removes the material redundancy of traditional framing, meaning every member must perform perfectly because there is no structural safety net for misplaced lumber.
Continuous OSB or plywood exterior sheathing is mandatory to resist wind and seismic lateral forces. The IRC permits this bracing method for 24″ on-center stud spacing, whereas weaker alternatives, such as let-in bracing, are limited to 16″ on-center spacing. High-wind or high-seismic zones require a professional engineering review rather than standard prescriptive code tables. In these regions, precise execution is critical; errors such as misaligned stack framing or missed fasteners can have severe structural consequences.
Energy Efficiency
Shifting to a thicker 2×6 wall section at 24″ on center provides a deeper insulation cavity, enabling higher R-values in exterior walls. Energy savings come directly from this increased insulation space and reduced thermal bridging from having fewer wood studs.
This efficiency boost is highly valuable in cold climates (IECC Zones 5-8) where high wall R-values are legally mandated. In warm climates, the energy savings are smaller relative to the framing design effort. However, if maximizing thermal performance is your primary goal, adding continuous exterior insulation over the sheathing increases R-values more effectively than advanced framing alone. These two strategies work best when combined.
Cost Reality – Does It Actually Save Money?
Advanced framing reduces lumber use by 5% to 10% in board-feet and uses 30% fewer structural pieces, cutting material costs and speeding up construction. However, inexperienced crews often lose these savings to job-site alignment errors. Production builders also face a $1,000 to $1,500 fee per design to redraw existing 2×4 blueprints into 2×6 layouts.
Net savings shrink on complex homes with irregular geometry, offsets, or dense window placements that break the framing module. Unfamiliar inspectors can also cause costly inspection delays unless builders coordinate with the city early. In the end, the system cuts material costs, but complex designs and untrained labor can easily erase those gains.
Code and Inspection Considerations
- IRC recognition – The International Residential Code explicitly approves advanced framing methods.
- 24″ spacing limits – Choosing 24″ on-center spacing restricts standard prescriptive code options.
- Shear wall tables – Traditional shear wall engineering tables narrow significantly at this wider spacing.
- Header span tables – Prescriptive header span choices shrink, requiring careful structural load calculations.
- Seismic and wind restrictions – High-wind zones or strict Seismic Design Categories often trigger mandatory professional engineering reviews.
- Early city collaboration – Proactive meetings with the building department secure critical upfront approvals for single top plates and single-ply headers.
- Competitive advantage – Mastering these complex regulatory hurdles completely separates your business from less technical competitors.
When Advanced Framing Makes Sense
Advanced framing provides the highest return on investment when design and energy goals match labor capabilities:
- Simple layouts – Best for rectangular floor plans where the 24″ framing module runs cleanly.
- Initial designs – Eliminate plan-redraw fees by using advanced framing from day one.
- Green standards – Help projects meet strict ENERGY STAR, LEED, or net-zero benchmarks.
- Mandated 2×6 walls – Cost-effective when energy codes already require deeper wall cavities.
- Experienced crews – Ensure success because carpenters understand inline stack framing and precise load paths.
When Traditional Framing Is the Smarter Choice
Stick-frame construction remains superior when structural conditions or design layouts demand material redundancy and tight spacing:
- Extreme environments – Traditional redundancy is safer in high-wind or high-seismic zones where engineering requirements are complex.
- Intricate blueprints – Complex architectural geometry constantly breaks the rigid 24″ layout module.
- Future remodels – Advanced framing’s tight tolerances complicate future structural changes and modifications.
- Heavy cabinetry – Cabinet-dense interiors need the intermediate fastening points provided by 16″ spacing.
- Unfamiliar carpenters – Misaligned advanced framing creates severe structural liabilities if crews lack experience.
Conclusion
Adopting advanced framing techniques is a smarter, not riskier, way to build that delivers real lumber, labor, and energy savings without compromising structural integrity. Success requires trading traditional material redundancy for job site precision and calculated efficiency. Ultimately, this approach is highly effective for high-performance builds, provided the system matches your specific project design, crew experience, and energy goals.
